Penetrant Inspection Services - NDT Consultants

Penetrant inspection, is used to detect surface defects and flaws in various materials.

It is commonly applied to metals, plastics, ceramics, and composites, making it a widely used non-destructive testing (NDT) method across industries.

PT is particularly effective in detecting cracks, seams, laps, porosity, and other surface-breaking defects that may not be visible to the naked eye.

In NDT, a penetrant refers to a specialized liquid solution applied to the surface of a test specimen during penetrant inspection.

The penetrant solution is designed to be drawn into any surface defects by capillary action.

After a dwell time, the excess penetrant is removed from the surface, leaving the penetrant trapped in the defects.

A developer is then applied to draw out the trapped penetrant, making any issues visible and detectable.

The penetrant testing process involves five main steps:

1. Pre-cleaning: The test specimen’s surface is thoroughly cleaned to remove contaminants, ensuring the penetrant can penetrate effectively into defects.
2. Application of penetrant: The penetrant solution is applied to the surface and allowed to dwell for a specified time, allowing it to seep into any surface defects.
3. Excess penetrant removal: After the dwell time, the excess penetrant is carefully removed from the surface, leaving the penetrant only in the defects.
4. Developer application: A developer, typically in powder or aerosol form, is applied to the surface. The developer acts as an absorbent, drawing out the trapped penetrant and making indications visible.
5. Inspection: Trained inspectors examine the test specimen under appropriate lighting conditions to identify and evaluate any indications revealing the presence of surface defects.

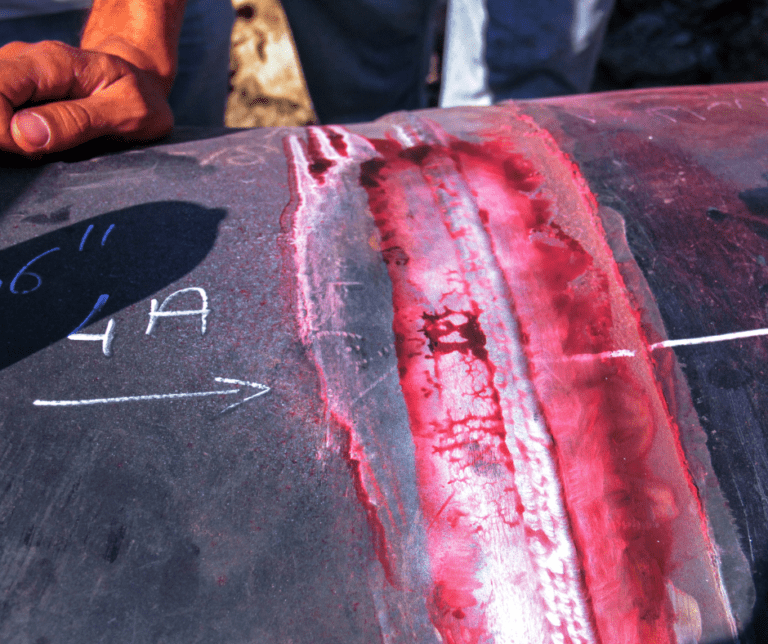

A penetrant dye inspection involves the following steps:

1. Surface preparation: The test specimen’s surface is cleaned to remove dirt, grease, and other contaminants that could interfere with the inspection process.
2. Penetrant application: The penetrant dye is applied to the cleaned surface, either by spraying, brushing, or immersing the specimen in a penetrant bath.
3. Dwell time: The penetrant dwells on the surface for a specified period, allowing it to seep into any surface defects through capillary action.
4. Excess penetrant removal: After the dwell time, the excess penetrant is removed from the surface, typically using a solvent or water rinse.
5. Developer application: A white developer is applied to draw out and highlight the penetrant trapped in defects, making them visible to the inspector.
6. Inspection: The test specimen is visually inspected under proper lighting conditions, and any indications of defects are assessed and evaluated by a qualified inspector.
